chromite sand 325mesh 400mesh for glass pigment

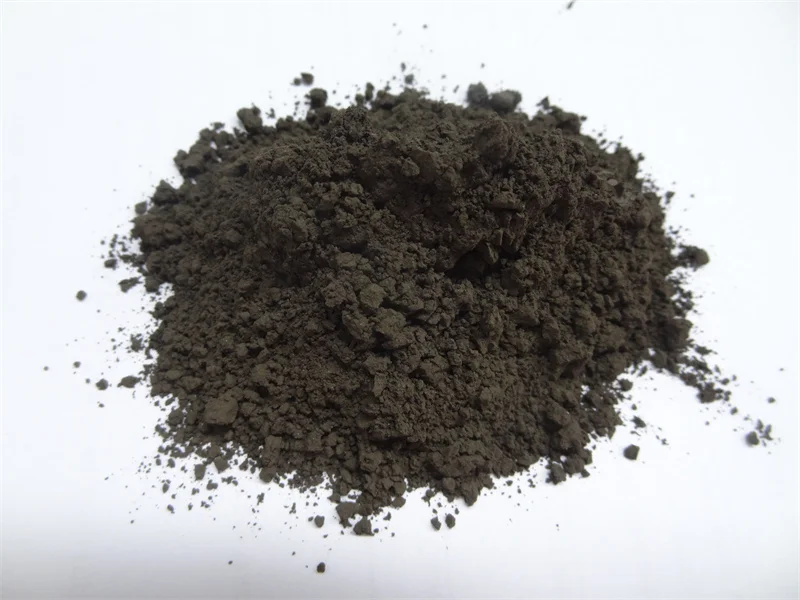

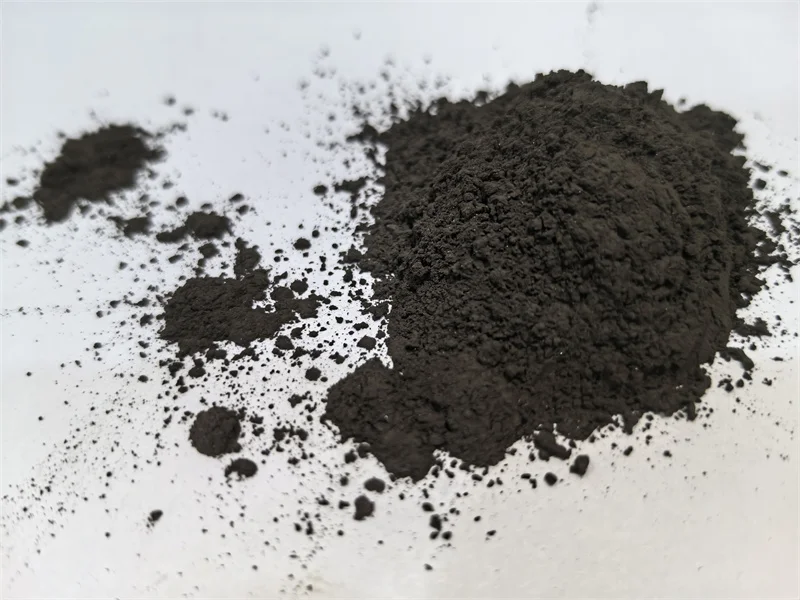

Chromite flour use as colorant in glass bottle fields. Originally from South Africa. The sand is produced by crushing chrome ore and its washing in spiral concentrators, subsequent drying, dust cleaning, screening and sorting as per grain size.The fine size is grinded to different powder such as 200mesh 325mesh 400mesh etc

chromite flour 325mesh 400mesh for glass pigment -1-

chromite flour 325mesh 400mesh for glass pigment -2-

Product Parameters

CHEMICAL		PHYSICAL
Cr₂O₃	46.0%min	Bulk Density	2.5-3g/cm³
SiO₂	1.0%max	PH Value	7-9
FeO	26.5%max	The amount of the acid	2ML max
CaO	0.3%max	Percent soil	0.1%max
MgO	10.0%max	Percent Moisture	0.1%max
Al₂O₃	15.5%max	The sintered	1600℃
P	0.003%max	Specific Gravity	4.0-4.8g/cm³
S	0.003%max	Filling Density	2.6g/cm³
Cr/Fe	1.55/1	melting temperature	2180°C

MAIN APPLICATIONS

Chromite Sand in the foundry industry

Its properties enable the material to be used in high duty grey iron and steel foundries as core and mould making sand. Its high thermal conductivity gives it good chilling properties, low thermal expansion gives rise to good dimensional stability. Its basicity being close to neutral allows the use of a wide range of resin bonding systems and inorganic binders, it has a high refractoriness and a broad sieve distribution.

Chromite Sand in the steel industry

In steel production, Chromite Sand is used as well filler for protection of the sliding gate in large steel holding ladles.

Chromite Sand in the glass industry

When ground to a fine flour, Chromite Sand is used for the production of green glass beverage containers.

OUR FACTORY

chromite flour 325mesh 400mesh for glass pigment -3-

Raw Material

Wash chrome ore

chromite flour 325mesh 400mesh for glass pigment -4-

Conveyor

Put the chrome ore into stock bin then convey to drying oven

chromite flour 325mesh 400mesh for glass pigment -5-

Drying plant

Fuel—bio-particles

chromite flour 325mesh 400mesh for glass pigment -6-

Magnetic separation and Screening

the macrogrits will be sorted to different sizes such as AFS25-30 AFS30-35 AFS435-40 AFS40-45 AFA45-50 etc and the fine will be separated and conveyed to grinding mill

chromite flour 325mesh 400mesh for glass pigment -7-

Grinding mill

The fine size will be grinded in the mill to different sizes as customers’required

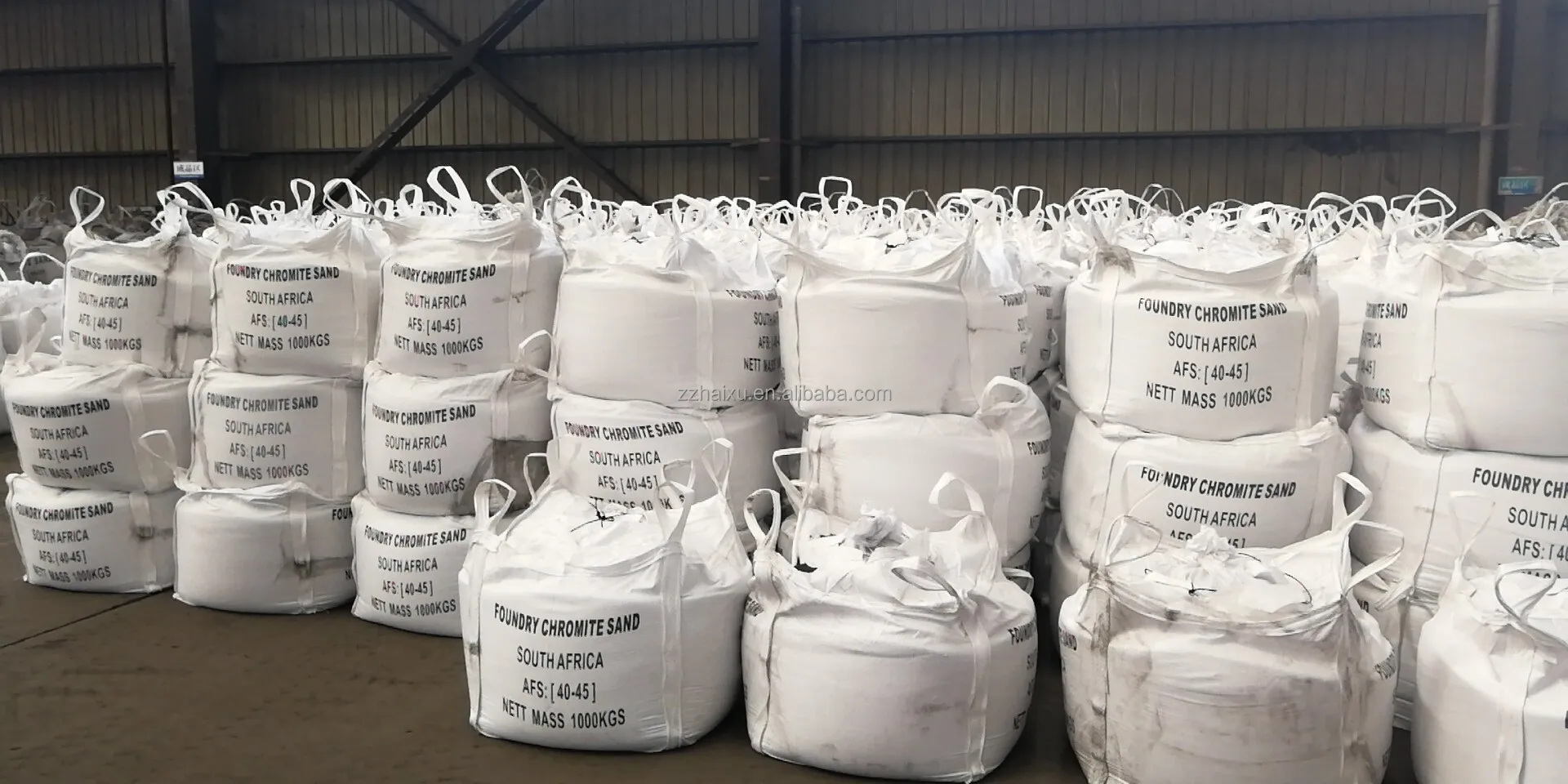

Product Packing

chromite flour 325mesh 400mesh for glass pigment -8-

chromite flour 325mesh 400mesh for glass pigment
